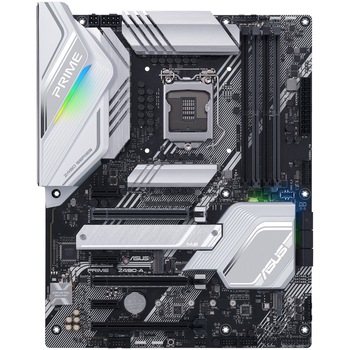

Placă de Bază ASUS PRIME Z490-A
| Specificații | |
| Interfata ATA | SATA |
| Sloturi PCI-E x16 | 2 |
| Conector sursa (pini) | 1 x 4 pin ATX 12V 1 x 8 pin ATX 12V 1 x 24 pin EATX |
| Rata de transfer SATA | 750 MB/s |
| Interfata Serial ATA | 6 x SATA |
| Conectivitate | 1 x SPDIF 1 x RJ-45 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 2 x USB 3.2 gen 1 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C) 1 x HDMI |
| RAID integrat | 0, 1, 5, 10 |
| Slot PCI | PCI Express 3.0 x16 |
| Audio integrat | Realtek ALC S1220A |
| LAN integrat | Intel I225-V 2.5Gb Ethernet |
| Sloturi memorie | 4 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Tip memorie | DDR 4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered |
| Socket procesor | 1 |
| Chipset | Intel Z490 |
| Procesoare suportate | Intel Core, Pentium, Gold si Celeron a 10-a generatie |
| CPU Socket | 1200 |
| Format | ATX |
| Brand | ASUS |
| Sloturi PCI-E x1 | 3 |
| Sloturi speciale | 2 x M.2 |
| Sloturi PCI-E x4 | 1 |
| Tehnologii suportate | ASUS Q-Design ASUS Exclusive Features ASUS EZ DIY ASUS 5X Protection III Asus AURA RGB |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
