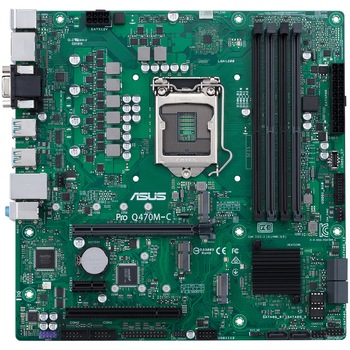

Placă de Bază ASUS PRO Q470M-C/CSM
| Specificații | |
| Conector sursa (pini) | 1 x 8 pin ATX 12V 1 x 24 pin EATX 1 x 8 pin EATX |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 1 x RJ-45 3 x audio jacks 2 x PS/2 2 x USB 2.0 1 x D-Sub 4 x USB 3.2 Gen 2 (teal blue) 2 x Display Port 1 x HDMI |
| LAN integrat | Intel I219-LM |
| Slot PCI | PCI Express x16 3.0 |
| Audio integrat | Realtek ALC887 |
| Sloturi memorie | 4 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 2933/2800/2666/2400/2133 |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | Intel Core, Pentium, Gold si Celeron a 10-a generatie |
| Chipset | Intel Q470 |
| CPU Socket | 1200 |
| Format | mATX |
| Brand | ASUS |
| Sloturi PCI-E x16 | 1 |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI | 1 |
| Sloturi speciale | 2 x M.2 |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 |
