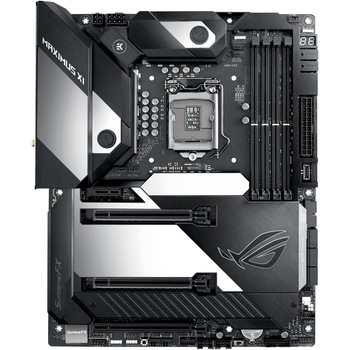

Placă de Bază ASUS - ROG MAXIMUS XI FORMULA
| Specificații | |
| Sloturi PCI-E x1 | 1 |
| Tehnologii suportate | ASUS Q-Design AI Overclocking ASUS Exclusive Features AURA: RGB Lighting Control ASUS Optimem II 5-Way Optimization by Dual Intelligent Processors 5 |
| Sloturi PCI-E x16 | 3 |
| Video integrat | Intel UHD Graphics |
| Porturi USB 2.0 | 4 |
| Porturi USB 3.1 | 8 x USB 3.1 Gen 1 1 x USB 3.1 Gen 2 (panoul frontal) 4 x USB 3.1 Gen 2 |
| RAID integrat | 0, 1, 5, 10 |
| Conector sursa (pini) | 1 x 24 pin EATX 1 x 4 pin EATX 12 V |
| Conectivitate | Wi-Fi 802.11 a/b/g/n/ac Bluetooth 5.0 |
| LAN integrat | Intel I219V 1 x Aquantia AQC111C 5G LAN |
| Audio integrat | SupremeFX |
| Sloturi memorie | 4 |
| Slot PCI | 1 x PCIe 3.0 x1 2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4) 1 x PCIe 3.0 x16 (max at x4 mode) |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 64 MB |
| Tip memorie | DDR4 |
| Procesoare suportate | 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Z390 |
| CPU Socket | 1151 |
| Format | ATX |
| Brand | ASUS |
| BIOS & memorie BIOS | UEFI AMI BIOS PnP 128 Mb Flash ROM DMI3.0 ACPI 6.1 SM BIOS 3.1 |
| Dimensiuni (L x W) (cm) | 24.4 cm x 22.6 cm |
