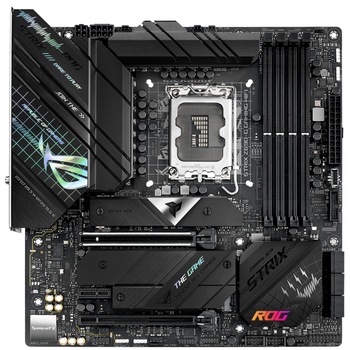

Placă de Bază ASUS ROG STRIX Z690-G GAMING WIFI
| Specificații | |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| RAID integrat | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 6 x SATA III |
| Slot PCI | PCIe 5.0 (pentru Intel 12th) |
| Audio integrat | ROG SupremeFX 7.1 |
| LAN integrat | Intel 2.5Gb Ethernet |
| Conectivitate | 1 x SPDIF optical out 1 x RJ-45 5 x Audio Jacks 1 x Clear CMOS buton 1 x DisplayPort 2 x USB 2.0 1 x Wi-Fi Module 4 x USB 3.2 gen 1 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C) 1 x BIOS FlashBack button 1 x RJ-45 2.5G LAN 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x HDMI |
| Sloturi memorie | 4 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered |
| Tip memorie | DDR5 |
| Socket procesor | 1 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Chipset | Z690 |
| CPU Socket | 1700 |
| Format | microATX |
| Brand | ASUS |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | AI Suite 3 ASUS EZ DIY Extreme Engine Digi+ ASUS Thermal Solution AURA Sync ASUS HYDRANODE |
| BIOS & memorie BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 |
