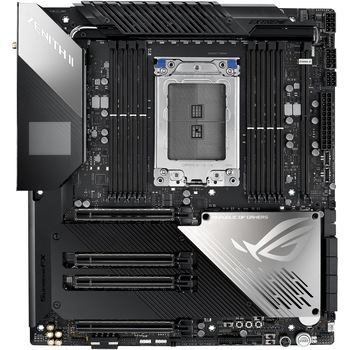

Placă de Bază ASUS - ROG ZENITH II EXTREME
| Specificații | |
| Sloturi PCI-E x16 | 4 |
| Interfata Serial ATA | 8 x SATA 6gb/s |
| Conector sursa (pini) | 1 x 24 pin EATX 2 x 8-pin ATX 12V |
| Conectivitate | 1 x SPDIF 1 x RJ-45 5 x Audio Jacks 1 x Aquantia AQC-107 10G LAN port 1 x USB 3.2 Gen 2x2 (pana la 20Gbps) Tip-C 4 x USB 3.2 Gen 1 albastru 5 x USB 3.2 Gen 2 (rosu) (3 x Tip-A + 1 x Tip-C) |
| RAID integrat | 0, 1, 10 |
| Slot PCI | 4 x PCI Express 4.0 x16 |
| Audio integrat | ROG SupremeFX CODEC S1220 |
| LAN integrat | Intel I211-AT 1 x Gigabit LAN Controller |
| Sloturi memorie | 8 |
| Suport Dualchannel | Da |
| Suport ECC | Da |
| Frecventa memorie (MHz) | 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz |
| Capacitate maxima memorie RAM | 256000 MB |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | AMD Ryzen Threadripper |
| Chipset | TRX40 |
| CPU Socket | sTRX4 |
| Format | E-ATX |
| Brand | ASUS |
| Sloturi speciale | 5 x M.2 |
| BIOS & memorie BIOS | UEFI AMI BIOS WfM 2.0 PnP 2 x 128 MB Flash SM BIOS 3.2 ACPI 6.2 |
| Dimensiuni (L x W) (cm) | 31 x 27.7 |
