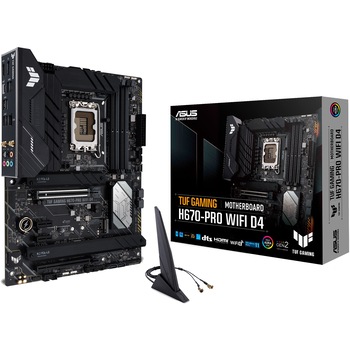

Placă de Bază ASUS TUF GAMING H670-PRO WIFI D4
| Specificații | |
| Brand | ASUS |
| Format | ATX |
| CPU Socket | 1700 |
| Chipset | H670 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Suport Dualchannel | Da |
| Suport ECC | Nu |
| Sloturi memorie | 4 |
| Slot PCI | PCIe 5.0 (pentru Intel 12th) |
| Audio integrat | Realtek 7.1 |
| LAN integrat | Intel 2.5GbE |
| RAID integrat | 0, 1, 5, 10 |
| Conectivitate | 1 x Optical S/PDIF OUT 5 x Audio Jacks 1 x DisplayPort 1 x Wi-Fi Module 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2x2 (pana la 20Gbps) Tip-C 2 x USB 3.2 Gen 2 Tip A 1 x RJ-45 2.5G LAN 1 x HDMI |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24-pin ATX 1 x 4-pin +12V 1 x 8-pin +12V |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS EZ DIY ASUS TUF Protection ASUS Thermal Solution AURA Sync Wi-Fi 6 Bluetooth 5.2 |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
