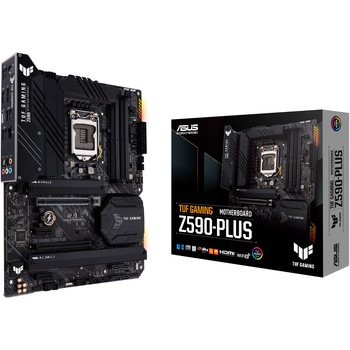

Placă de Bază ASUS - TUF GAMING Z590-PLUS
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V |
| Sloturi PCI-E x16 | 2 |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 6 x SATA |
| Conectivitate | 1 x Optical S/PDIF OUT 5 x Audio Jacks 1 x PS/2 1 x DisplayPort 2 x USB 2.0 1 x USB 3.2 Gen 2x2 (pana la 20Gbps) Tip-C 2 x USB 3.2 Gen 2 Tip A 2 x USB 3.2 Gen 1 Tip A 1 x RJ-45 2.5G LAN 1 x HDMI |
| LAN integrat | Intel 2.5Gb Ethernet |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI Express 4.0 x16 (11th gen Intel CPU) |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | Intel Core, Pentium Gold si Celeron din a 11-a si a 10-a generatie |
| Chipset | Z590 |
| CPU Socket | 1200 |
| Format | ATX |
| Brand | ASUS |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 3 x M.2 |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Tehnologii suportate | ASUS Q-Design ASUS EZ DIY ASUS TUF Protection Extreme Engine Digi+ ASUS Thermal Solution AURA Sync |
