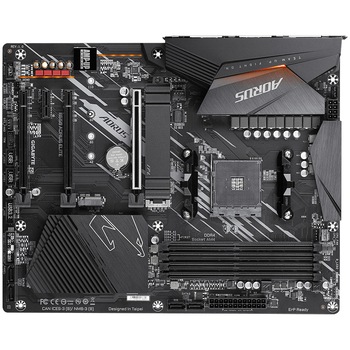

Placă de Bază Gigabyte B550 AORUS ELITE
| Specificații | |
| Sloturi speciale | 2 x M.2 |
| Sloturi PCI-E x16 | 1 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA |
| Conectivitate | 1 x RJ-45 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 1 x Q-Flash Plus button 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 gen 1 1 x SPDIF out 1 x HDMI |
| RAID integrat | 0,1,10 |
| Audio integrat | Realtek ALC1220-VB codec |
| LAN integrat | 1 x Realtek 2.5GbE LAN chip |
| Slot PCI | PCI Express x16 4.0 |
| Suport ECC | Da pentru Un-buffered DIMM 1Rx8/2Rx8 |
| Frecventa memorie (MHz) | 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Chipset | AMD B550 |
| Procesoare suportate | A treia generatie de procesoare AMD Ryzen si noua generatie AMD Ryzen cu grafica Radeon |
| CPU Socket | AM4 |
| Format | ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x4 | 2 |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Tehnologii suportate | EasyTune Fast Boot RGB FUSION Game Boost Smart Backup System Information Viewer |
