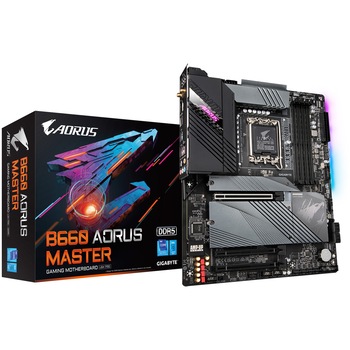

Placă de Bază Gigabyte B660 AORUS MASTER
| Specificații | |
| Slot PCI | PCIe 4.0 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4 pin ATX 12V 1 x 8 pin ATX 12V |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conectivitate | 1 x Optical S/PDIF OUT 1 x RJ-45 5 x Audio Jacks 1 x DisplayPort 2 x SMA Antena Connectors (2T2R) 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2x2 (pana la 20Gbps) Tip-C 1 x USB 3.2 Gen 2 Tip-A 4 x USB 2.0 1 x HDMI |
| RAID integrat | 0, 1, 5, 10 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Audio integrat | Realtek ALC1220-VB codec |
| LAN integrat | Intel 2.5GbE |
| Frecventa memorie (MHz) | 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 |
| Capacitate maxima memorie RAM | 128 GB |
| Socket procesor | 1 |
| Tip memorie | DDR5 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| CPU Socket | 1700 |
| Chipset | B660 |
| Format | ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 3 x M.2 |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Tehnologii suportate | 2-Way AMD CrossFire Wi-Fi 6 2.5 Gbps LAN Bluetooth 5.2 |
