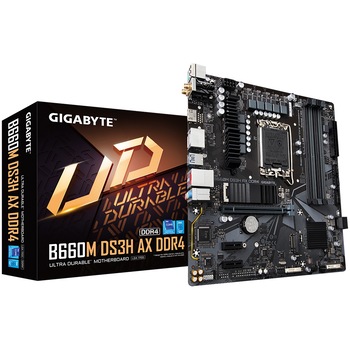

Placă de Bază Gigabyte B660M DS3H AX DDR4
| Specificații | |
| Conector sursa (pini) | 1 x 24-pin ATX 1 x 8-pin ATX 12V |
| Sloturi PCI-E x16 | 1 |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conectivitate | 1 x RJ-45 3 x Audio Jack 1 x PS/2 2 x USB 2.0 2 x DisplayPort 2 x SMA Antena Connectors (2T2R) 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 1 1 x HDMI |
| RAID integrat | 0, 1, 5, 10 |
| LAN integrat | Realtek 2.5GbE LAN |
| Suport ECC | Nu |
| Slot PCI | PCIe 4.0 |
| Audio integrat | Realtek Audio codec |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 |
| Socket procesor | 1 |
| Chipset | Intel B660 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| CPU Socket | 1700 |
| Format | mATX |
| Brand | Gigabyte |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | EasyTune Xpress Install Fast Boot ON/OFF Charge RGB FUSION Game Boost Smart Backup Q-Flash Plus Bluetooth 5.2 Intel Wi-Fi 6 |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 |
