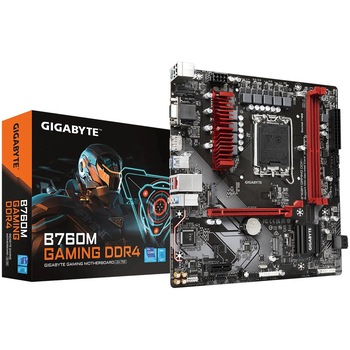

Placă de Bază Gigabyte - B760M GAMING DDR4
| Specificații | |
| Sloturi PCI-E x16 | 1 |
| Porturi USB 2.0 | 2 |
| Porturi seriale | 1 x Header |
| RAID integrat | 0,1,5,10 |
| Conector sursa (pini) | 1 x 24-pin ATX 1 x 8-pin ATX 12V |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| LAN integrat | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Conectivitate | 2 x USB 2.0 1 x USB Type-C 3 x audio jacks 1 x DisplayPort 1 x PS/2 1 x D-Sub 1 x RJ-45 Port 3 x USB 3.2 Gen 1 1 x HDMI |
| Audio integrat | 2/4/5.1/7.1-channel |
| Slot PCI | 1 x PCI Express x16 1 x PCI Express x1 |
| Sloturi memorie | 2 |
| Capacitate maxima memorie RAM | 64 GB |
| Frecventa memorie (MHz) | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | 12th/13th Gen Intel Core Processors, Pentium Gold si Celeron |
| Chipset | Intel B760 |
| CPU Socket | 1700 |
| Format | Micro ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 2 x M.2 |
| BIOS & memorie BIOS | AMI UEFI BIOS 128 Mbit flash |
| Dimensiuni (L x W) (cm) | 24.4 x 22.5 |
