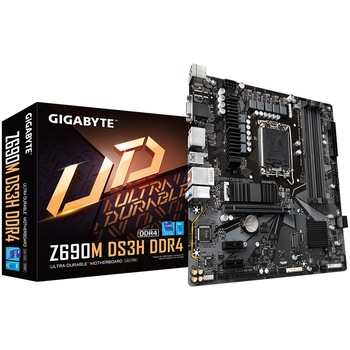

Placă de Bază Gigabyte Z690M DS3H DDR4
| Specificații | |
| Sloturi PCI-E x16 | 1 |
| Porturi seriale | 1 |
| Porturi paralele | 1 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V |
| RAID integrat | 0, 1, 5, 10 |
| Rata de transfer SATA | 750 MB/s |
| Interfata Serial ATA | 4 x SATA |
| Conectivitate | 1 x RJ-45 3 x Audio Jack 1 x PS/2 2 x USB 2.0 1 x D-Sub 2 x DisplayPort 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 1 1 x HDMI |
| Slot PCI | PCIe 4.0 |
| Audio integrat | Realtek audio codec |
| LAN integrat | Realtek 2.5GbE LAN |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Chipset | Intel Z690 |
| CPU Socket | 1700 |
| Format | Micro ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | EasyTune Q-Flash Xpress Install APP Center Fast Boot RGB FUSION Smart Backup Q-Flash Plus |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 |
