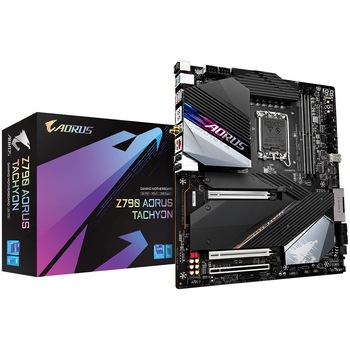

Placă de Bază Gigabyte - Z790 AORUS TACHYON
| Specificații | |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 1 x RJ-45 1 x Optical S/PDIF OUT 5 x Audio Jacks 2 x PS/2 1 x HDMI 2 x SMA Antena Connectors (2T2R) 1 x Q-Flash Plus button 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 3 x USB 3.2 Gen 2 Tip-A |
| LAN integrat | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Suport Dualchannel | Da |
| Sloturi memorie | 2 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek ALC1220-VB codec |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 96 GB |
| Frecventa memorie (MHz) | 8333(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Chipset | Intel Z790 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| CPU Socket | LGA 1700 |
| Format | E-ATX |
| Brand | Gigabyte |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Dual BIOS Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) |
| BIOS & memorie BIOS | AMI UEFI BIOS 2 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 27 cm |
