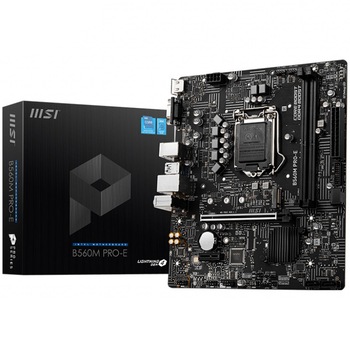

Placă de Bază MSI B560M PRO-E
| Specificații | |
| Sloturi PCI-E x16 | 1 |
| Porturi seriale | 1 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX |
| Interfata Serial ATA | 4 x SATA |
| Rata de transfer SATA | 6000 MB/s |
| Conectivitate | 1 x RJ-45 3 x Audio Jack 1 x PS/2 2 x USB 3.2 Gen 1 Tip A 1 x VGA 4 x USB 2.0 1 x HDMI |
| LAN integrat | Intel I219V |
| Audio integrat | Realtek ALC897 |
| Slot PCI | PCI Express 4.0 x16 (11th gen Intel CPU) |
| Suport ECC | Nu |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| Capacitate maxima memorie RAM | 64 GB |
| CPU Socket | 1200 |
| Chipset | Intel B560 |
| Procesoare suportate | A 10-a si a 11-a generatie Intel Core, Pentium Gold si Celeron |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Brand | MSI |
| Format | Micro ATX |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 1 x M.2 |
| Tehnologii suportate | DDR4 Boost Audio Boost Ez Debug LED Core Boost Lightning Gen4 Solution Frozr AI Cooling |
| BIOS & memorie BIOS | Multi-Language BIOS 256 Mb Flash ROM, UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 |
| Dimensiuni (L x W) (cm) | 23.6 x 20.2 |
