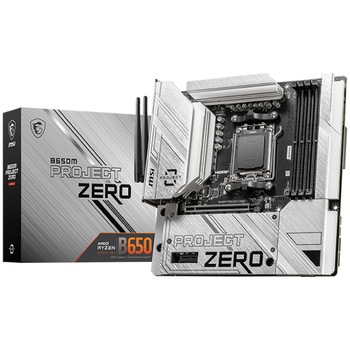

Placă de Bază MSI B650M PROJECT ZERO
| Specificații | |
| Brand | MSI |
| Format | mATX |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Procesoare suportate | AMD Ryzen 8000/ 7000 Series Desktop Processors |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 4.0 |
| Audio integrat | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| LAN integrat | Realtek RTL8125BG 2.5Gbps LAN |
| Conectivitate | 2 x USB 2.0 1 x RJ-45 1 x DisplayPort 3 x Audio Jack 1 x HDMI 2 x USB-C 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 2 10Gbps Type-A |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 1 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | Mystic Light |
| Altele | Bluetooth 5.3 Wi-Fi 6E |
| Dimensiuni (L x W) (cm) | 243.84 x 243.84 mm |
