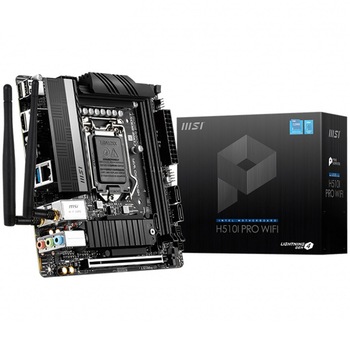

Placă de Bază MSI H510I PRO WIFI
| Specificații | |
| Porturi paralele | 1 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX |
| Porturi USB 2.0 | 4 |
| Porturi USB 3.1 | 2 x USB 3.1 Gen 2 (1 in spate / 1 pe placa) |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 3 x Audio Jack 1 x DisplayPort 2 x USB 3.2 Gen 1 Tip A 1 x Wi-Fi / Bluetooth 1 x RJ-45 2.5G LAN 4 x USB 2.0 1 x HDMI |
| LAN integrat | Realtek 8125B |
| Slot PCI | PCI Express 4.0 x16 (11th gen Intel CPU) |
| Audio integrat | Realtek ALC897 |
| Standarde memorie | DDR4 |
| Sloturi memorie | 2 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 64 GB |
| Socket procesor | 1 |
| Procesoare suportate | A 10-a si a 11-a generatie Intel Core, Pentium Gold si Celeron |
| CPU Socket | 1200 |
| Chipset | Intel H510 |
| Format | Mini ITX |
| Brand | MSI |
| Porturi seriale | 1 |
| Sloturi PCI-E x16 | 1 |
| Sloturi speciale | 1 x M.2 |
| Tehnologii suportate | DDR4 Boost Audio Boost Ez Debug LED Mystic Light Core Boost Wi-Fi 6 2.5G Network Solution Lightning Gen4 Solution Frozr AI Cooling Bluetooth 5.1 |
| Altele | Intel Wi-Fi 6 AX201 |
| Dimensiuni (L x W) (cm) | 17 x 17 |
