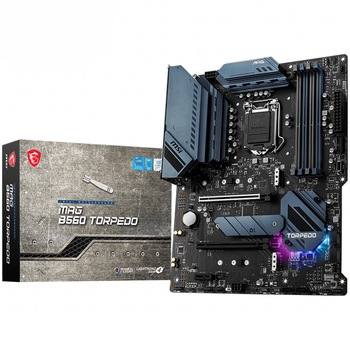

Placă de Bază MSI MAG B560 TORPEDO
| Specificații | |
| Porturi seriale | 1 |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX 1 x 4 pin 12V |
| Interfata Serial ATA | 6 x SATA |
| Conectivitate | 1 x Optical S/PDIF OUT 2 x RJ-45 5 x Audio Jacks 1 x DisplayPort 1 x USB 3.2 Gen 2 Tip-C 4 x USB 3.2 Gen 1 (albastru) Tip-A 4 x USB 2.0 1 x HDMI |
| LAN integrat | Intel I219V Realtek RTL8125B |
| Standarde memorie | DDR4 |
| Slot PCI | PCI Express 4.0 x16 (11th gen Intel CPU) |
| Audio integrat | Realtek ALC897 |
| Suport ECC | Nu |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5066(OC)/5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133 |
| Socket procesor | 1 |
| Chipset | Intel B560 |
| Procesoare suportate | A 10-a si a 11-a generatie Intel Core, Pentium Gold si Celeron |
| CPU Socket | 1200 |
| Format | ATX |
| Brand | MSI |
| Porturi IEEE 1394 (FireWire) | Nu |
| Porturi USB 2.0 | 4 |
| Porturi paralele | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | DDR4 Boost Audio Boost Mystic Light Core Boost 2.5G LAN Frozr AI Cooling |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
