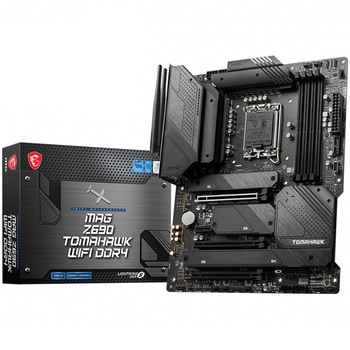

Placă de Bază MSI MAG Z690 TOMAHAWK WIFI DDR4
| Specificații | |
| Brand | MSI |
| Format | ATX |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Sloturi memorie | 4 |
| Frecventa memorie (MHz) | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Suport Dualchannel | Da |
| Suport ECC | Nu |
| Slot PCI | PCIe 5.0 |
| Audio integrat | Realtek ALC4080 |
| LAN integrat | Intel I225V |
| RAID integrat | NVMe RAID 0/1/5/10, SATA RAID 0/1/10 |
| Conectivitate | 1 x Optical S/PDIF OUT 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 3 x USB 3.2 Gen 2 Tip-A 2 x USB 3.2 Gen 1 Tip A 1 x Wi-Fi / Bluetooth 1 x RJ-45 2.5G LAN |
| Interfata Serial ATA | 6 x SATA III |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8-pin ATX |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 4 x M.2 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Tehnologii suportate | Mystic Light Core Boost WIFI 6 Lightning USB 20G Audio Boost 5 2.5G Network Solution Bluetooth 5.2 Memory Boost Lightning Gen 5 |
