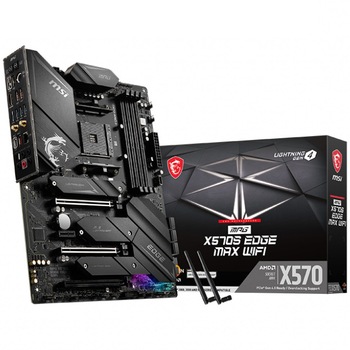

Placă de Bază MSI MPG X570S EDGE MAX WIFI
| Specificații | |
| Slot PCI | PCI Express 4.0 x16 (numai pentru seriile 5000 si 3000) |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4-pin ATX 1 x 8-pin ATX |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 1 x RJ-45 5 x Audio Jacks 1 x Clear CMOS buton 1 x PS/2 2 x USB 2.0 1 x Optical SPDIF Out 1 x Flash BIOS Button 3 x USB 3.2 Gen 2 Tip-A 4 x USB 3.2 Gen 1 (albastru) Tip-A 1 x USB 3.2 Gen 2 (albastru deschis) Tip-A 1 x HDMI |
| Suport ECC | Nu |
| Audio integrat | Realtek ALC4080 |
| LAN integrat | Realtek 8125B |
| RAID integrat | 0, 1, 10 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Socket procesor | 1 |
| Chipset | AMD X570 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series |
| CPU Socket | AM4 |
| Format | ATX |
| Brand | MSI |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 3 x M.2 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Tehnologii suportate | DDR4 Boost Mystic Light Core Boost Wi-Fi 6E Audio Boost 5 2.5G Network Solution Lightning Gen4 Solution |
