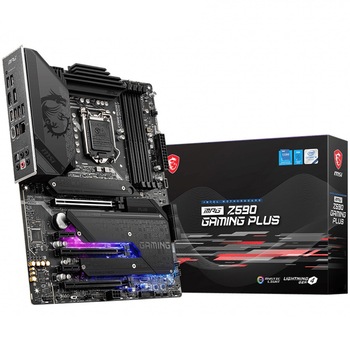

Placă de Bază MSI MPG Z590 GAMING PLUS
| Specificații | |
| Sloturi speciale | 3 x M.2 |
| Porturi paralele | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 2 |
| Porturi USB 2.0 | 2 |
| Rata de transfer SATA | 750 MB/s |
| Porturi seriale | 1 |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8-pin ATX 1 x 6-pin PCIe |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 1 x Optical S/PDIF OUT 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 1 x Flash BIOS Button 1 x USB 3.2 Gen 2x2 (pana la 20Gbps) Tip-C 3 x USB 3.2 Gen 2 Tip-A 2 x USB 3.2 Gen 1 Tip A 1 x RJ-45 2.5G LAN 1 x HDMI |
| RAID integrat | 0/1/5/10 |
| LAN integrat | Intel I225V |
| Audio integrat | Realtek ALC4080 |
| Slot PCI | PCI Express 4.0 x16 |
| Standarde memorie | DDR4 |
| Suport ECC | Nu |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | A 10-a si a 11-a generatie Intel Core, Pentium Gold si Celeron |
| Chipset | Z590 |
| CPU Socket | 1200 |
| Format | ATX |
| Brand | MSI |
| Sloturi PCI-E x4 | 1 |
| Tehnologii suportate | DDR4 Boost Mystic Light Core Boost Lightning USB 20G Audio Boost 5 2.5G Network Solution Lightning Gen4 Solution |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Altele | HDMI |
