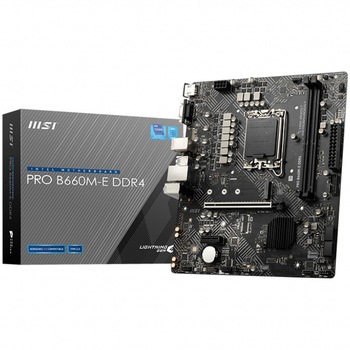

Placă de Bază MSI PRO B660M-E DDR4
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX |
| Interfata Serial ATA | 4 x SATA |
| LAN integrat | Intel I219V |
| Conectivitate | 1 x RJ-45 3 x Audio Jack 1 x PS/2 2 x USB 3.2 gen 1 1 x VGA 4 x USB 2.0 1 x HDMI |
| Audio integrat | Realtek ALC892/ ALC897 |
| Slot PCI | PCIe 4.0 |
| Sloturi memorie | 2 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 64 GB |
| Frecventa memorie (MHz) | 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Chipset | B660 |
| CPU Socket | 1700 |
| Format | Micro ATX |
| Brand | MSI |
| RAID integrat | 0, 1, 5, 10 |
| Sloturi PCI-E x16 | 1 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 1 x M.2 |
| Tehnologii suportate | Audio Boost Ez Debug LED Core Boost Lightning Gen4 Solution Frozr AI Cooling Memory Boost |
| Dimensiuni (L x W) (cm) | 24.4 x 21.1 |
