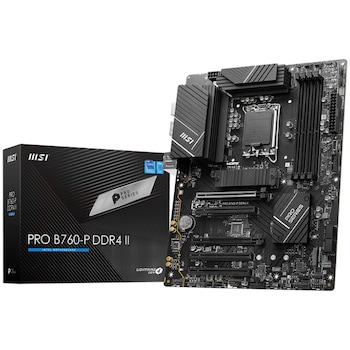

Placă de Bază MSI - PRO B760-P DDR4 II
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 2 x USB 2.0 1 x RJ-45 1 x Optical S/PDIF OUT 1 x DisplayPort 1 x HDMI 5 x audio jack 1 x USB 3.2 Gen 2 Tip-C 2 x USB 3.2 Gen 1 5Gbps Type-A |
| LAN integrat | Realtek RTL8125BG 2.5G LAN |
| Audio integrat | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Slot PCI | PCI-Express 4.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Tip memorie | DDR4 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Format | ATX |
| Brand | MSI |
| Rata de transfer SATA | 6000 MB/s |
| Sloturi PCI-E x16 | 5 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | Mystic Light |
| Dimensiuni (L x W) (cm) | 24.3 x 30.4 cm |
| BIOS & memorie BIOS | Click BIOS 5 |
