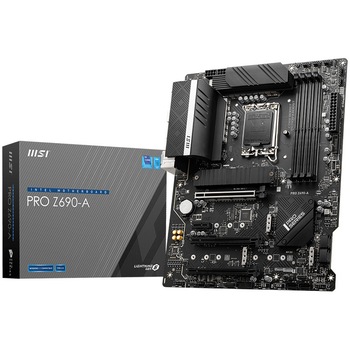

Placă de Bază MSI PRO Z690-A
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8-pin ATX |
| Porturi USB 2.0 | 4 |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 6 x Audio Jacks 1 x RJ-45 1 x PS/2 1 x DisplayPort 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 2 x USB 3.2 Gen 1 Tip A 1 x USB 3.2 Gen 2 Tip-A 4 x USB 2.0 1 x HDMI |
| Audio integrat | Realtek ALC897 7.1 |
| LAN integrat | Intel I225V |
| RAID integrat | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| Slot PCI | PCIe 5.0 |
| Sloturi memorie | 4 |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Tip memorie | DDR5 |
| Socket procesor | 1 |
| Procesoare suportate | Procesoare Intel Core, Pentium Gold si Celeron din a 12-a generatie |
| Chipset | Z690 |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | MSI |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Mystic Light Core Boost Lightning USB 20G 2.5G Network Solution Frozr AI Cooling Memory Boost Lightning Gen 5 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
