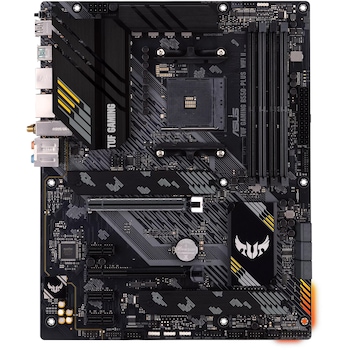

Placă de Bază ASUS - TUF GAM B550-PLUS WIFI II
| Specificații | |
| Brand | ASUS |
| Format | ATX |
| CPU Socket | AM4 |
| Chipset | AMD B550 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 4.0 |
| Audio integrat | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 1 x Realtek 2.5Gb Ethernet |
| RAID integrat | 0, 1, 10 |
| Conectivitate | 1 x Optical S/PDIF OUT 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 1 x Wi-Fi Module 4 x USB 3.2 Gen 1 (albastru) Type-A 1 x BIOS FlashBack button 1 x Realtek 2.5Gb Ethernet port 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 1 x HDMI |
| Interfata Serial ATA | 6 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24-pin 1 x 8-pin +12V |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 3 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS EZ DIY ASUS Turbo LAN Utility ASUS Aura Sync ASUS TUF Protection |
| BIOS & memorie BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| Altele | Bluetooth v5.2 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
