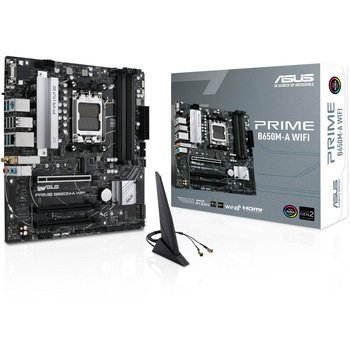

Placă de Bază ASUS - PRIME B650M-A WIFI
| Specificații | |
| Brand | ASUS |
| Format | Micro ATX |
| CPU Socket | AM5 |
| Chipset | B650 |
| Procesoare suportate | AMD Ryzen 7000 Series |
| Socket procesor | 1 |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | 2 x PCIe 4.0 x16 1 x PCIe 4.0 x16 |
| Audio integrat | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 1 x Realtek 2.5Gb Ethernet |
| Conectivitate | 1 x VGA 3 x audio jacks 1 x DisplayPort 1 x PS/2 1 x Wi-Fi Module 2 x USB 3.2 Gen 2 2 x USB 3.2 gen 1 1 x BIOS FlashBack button 1 x Realtek 2.5Gb Ethernet port 4 x USB 2.0 1 x HDMI |
| Interfata Serial ATA | 4 x SATA |
| Rata de transfer SATA | 750 MB/s |
| Conector sursa (pini) | 1 x 24-pin ATX main power connector 1 x 8-pin +12V |
| RAID integrat | 0,1,10 |
| Porturi USB 2.0 | 4 |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS EZ DIY ASUS 5X Protection III ASUS Thermal Solution AURA Sync |
| BIOS & memorie BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Altele | Bluetooth v5.2 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 |
