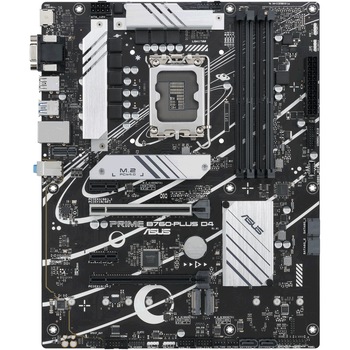

Placă de Bază ASUS - PRIME B760-PLUS D4
| Specificații | |
| Brand | ASUS |
| Format | ATX |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | 12th/13th Gen Intel Core Processors, Pentium Gold si Celeron |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | 2 x PCIe 3.0 x1 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4) |
| Audio integrat | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 1 x Realtek 2.5Gb Ethernet |
| Conectivitate | 2 x USB 2.0 1 x VGA 3 x audio jacks 1 x DisplayPort 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 Tip-A 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 1 x HDMI |
| Interfata Serial ATA | 4 x SATA |
| Rata de transfer SATA | 750 MB/s |
| Conector sursa (pini) | 1 x 24-pin 1 x 8-pin +12V |
| RAID integrat | 0,1,5,10 |
| Porturi USB 2.0 | 2 |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS UEFI BIOS EZ ASUS EZ DIY ASUS 5X Protection III ASUS Thermal Solution ASUS Exclusive Software AURA Sync |
| BIOS & memorie BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
