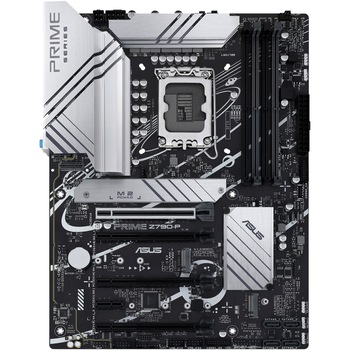

Placă de Bază ASUS PRIME Z790-P
| Specificații | |
| Porturi USB 2.0 | 4 |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conectivitate | 3 x audio jacks 1 x DisplayPort 1 x PS/2 2 x USB 3.2 Gen 1 Tip A 1 x USB 3.2 Gen 2 Tip-A 1 x RJ-45 2.5G LAN 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x Vertical M.2 slot (Key E) 4 x USB 2.0 1 x HDMI |
| Audio integrat | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Slot PCI | 1 x PCIe 3.0 x1 1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 |
| Suport ECC | Nu |
| Standarde memorie | Unbuffered |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR5 |
| Socket procesor | 1 |
| Chipset | Intel Z790 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron Intel Core 13th Gen |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | ASUS |
| Sloturi PCI-E x16 | 4 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 3 x M.2 |
| Dimensiuni (L x W) (cm) | 30.5 x 23.4 |
| Altele | ASUS DIGI+ VRM SafeSlot Core+ AURA RGB headers Armoury Crate Overvoltage Protection |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
