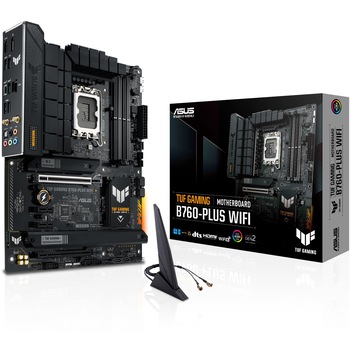

Placă de Bază ASUS - TUF GAMING B760-PLUS WIFI
| Specificații | |
| Tehnologii suportate | ASUS Q-Design ASUS UEFI BIOS EZ Mode ASUS EZ DIY ASUS TUF Protection ASUS Thermal Solution ASUS Exclusive Software AURA Sync |
| Sloturi speciale | 3 x M.2 |
| Porturi USB 2.0 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 2 |
| Rata de transfer SATA | 6000 MB/s |
| RAID integrat | 0/1/5/10 |
| Conector sursa (pini) | 1 x 4-pin +12V 1 x 8-pin +12V 1 x 24-pin Main Power connector |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| LAN integrat | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Conectivitate | 1 x Optical S/PDIF OUT 1 x DisplayPort 5 x Audio Jacks 1 x HDMI 1 x Wi-Fi Module 1 x USB 3.2 Gen 2 Tip-A 3 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x Realtek 2.5Gb Ethernet port 1 x USB 2.0 |
| Audio integrat | Realtek 7.1 |
| Sloturi memorie | 4 |
| Slot PCI | 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 1 x PCIe 5.0 x16 |
| Frecventa memorie (MHz) | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC |
| Capacitate maxima memorie RAM | 192 GB |
| Tip memorie | DDR5 |
| Socket procesor | 1 |
| Procesoare suportate | 12th/13th Gen Intel Core Processors, Pentium Gold si Celeron |
| Chipset | Intel B760 |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | ASUS |
| BIOS & memorie BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Altele | Bluetooth v5.2 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
