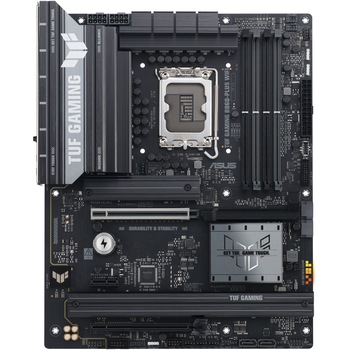

Placă de Bază ASUS - TUF GAMING B860-PLUS WIFI
| Specificații | |
| Brand | ASUS |
| Format | ATX |
| CPU Socket | LGA1851 |
| Chipset | Intel B860 |
| Procesoare suportate | Intel Core Ultra Processors (Series 2) |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz): | 8666+MT/s (OC) |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat: | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | Realtek 2.5Gb Ethernet |
| Conectivitate | 2 x USB 2.0 1 x RJ-45 1 x Optical S/PDIF OUT 1 x DisplayPort 5 x Audio Jacks 1 x HDMI 1 x Wi-Fi Module 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 3 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 10Gbps (Type-A) |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8-pin ATX |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS UEFI BIOS EZ Mode ASUS EZ DIY ASUS TUF Protection ASUS Thermal Solution ASUS Exclusive Software |
| BIOS & memorie BIOS | 2 x 128 Mb Flash ROM UEFI AMI BIOS |
| Altele | 2x2 Wi-Fi 7 (802.11be) Bluetooth 5.4 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
