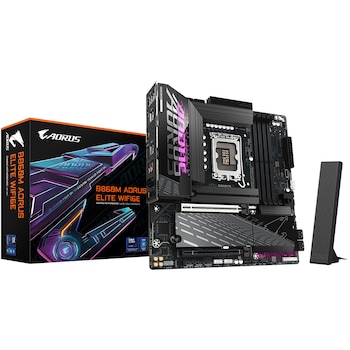

Placă de Bază Gigabyte - B860M A ELITE WIFI6E
| Specificații | |
| Brand | Gigabyte |
| Format | Micro ATX |
| CPU Socket | LGA1851 |
| Chipset | Intel B860 |
| Procesoare suportate | Intel Core Ultra Processors |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek 2.5GbE LAN chip |
| Conectivitate | 1 x RJ-45 1 x DisplayPort 4 x USB 2.0/1.1 1 x HDMI 2 x Audio Jacks 1 x Optical SPDIF Out 2 x Antenna Ports 4 x USB 3.2 gen 1 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 4 |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 2 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | Q-Flash RGB FUSION Q-Flash Plus GIGABYTE Control Center (GCC) |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Altele | 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth 5.3 Iluminare RGB |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 cm |
