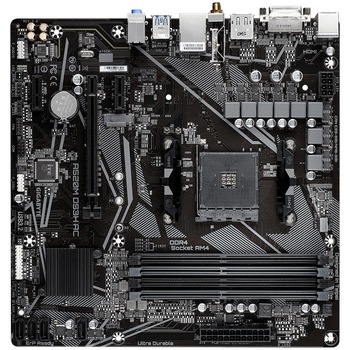

Placă de Bază Gigabyte - A520M DS3H AC
| Specificații | |
| Brand | Gigabyte |
| Format | mATX |
| CPU Socket | AM4 |
| Chipset | AMD A520 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 3.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Conectivitate | 2 x USB 2.0 1 x PS/2 1 x RJ-45 1 x DisplayPort 3 x Audio Jack 1 x HDMI 1 x DVI-D 2 x SMA Antena Connectors (2T2R) 4 x USB 3.2 gen 1 |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 1 |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 1 x M.2 |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 cm |
| Tehnologii suportate | Q-Flash @BIOS Smart Fan 5 RGB FUSION Q-Flash Plus |
| BIOS & memorie BIOS | 1 x 128 Mbit flash |
| Altele | Bluetooth 5.0 Wi-Fi 802.11 a/b/g/n/ac |
