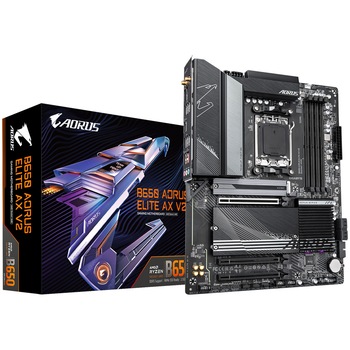

Placă de Bază Gigabyte B650 A ELITE AX V2
| Specificații | |
| Sloturi speciale | 3 x M.2 |
| Sloturi PCI-E x16 | 3 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4 pin ATX 12V 1 x 8 pin ATX |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Conectivitate | 1 x RJ-45 3 x audio jacks 1 x DisplayPort 4 x USB 2.0/1.1 1 x HDMI 2 x SMA Antena Connectors (2T2R) 1 x Q-Flash Plus button 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Tip-C 5 x USB 3.2 Gen 1 ports |
| Audio integrat | Realtek Audio codec |
| Slot PCI | PCI-Express 4.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 |
| Capacitate maxima memorie RAM | 192 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | AMD Ryzen 7000/ Ryzen 8000 Series Processors |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| Format | ATX |
| Brand | Gigabyte |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
| BIOS & memorie BIOS | AMI UEFI BIOS 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
