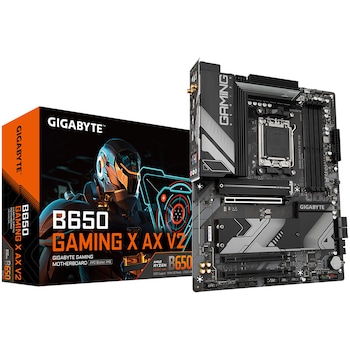

Placă de Bază Gigabyte B650 GAMING X AX V2
| Specificații | |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 3 x M.2 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4 pin ATX 12V 1 x 8 pin ATX |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 1 x RJ-45 1 x DisplayPort 3 x Audio Jack 1 x HDMI 2 x SMA Antena Connectors (2T2R) 1 x Q-Flash Plus button 1 x USB 3.2 Gen 2 Tip-C 1 x USB 3.2 Gen 2 Tip-A 3 x USB 3.2 Gen 1 3 x USB 2.0/1.1 ports |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek Audio codec |
| Frecventa memorie (MHz) | 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s |
| Capacitate maxima memorie RAM | 192 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | AMD Ryzen 7000/ Ryzen 8000 Series Processors |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| Format | ATX |
| Brand | Gigabyte |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
| BIOS & memorie BIOS | AMI UEFI BIOS 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| Altele | Bluetooth 5.3 Wi-Fi 6E |
