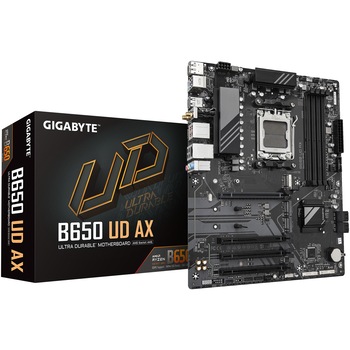

Placă de Bază Gigabyte - B650 UD AX
| Specificații | |
| Brand | Gigabyte |
| Format | ATX |
| CPU Socket | AM5 |
| Chipset | B650 |
| Procesoare suportate | Suporta procesoare AMD Socket AM5 Ryzen din seria 9000, 8000 si 7000 |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 4.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek RTL8111H Gigabit LAN |
| Conectivitate | 1 x PS/2 1 x RJ-45 3 x audio jacks 1 x DisplayPort 1 x HDMI 6 x USB 2.0/1.1 2 x SMA antenna connectors 2 x USB 3.2 Gen 2 Tip A 1 x USB 3.2 Gen 1 Tip-C |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 4 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Altele | Wi-Fi 802.11 ac Bluetooth 5.0 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
