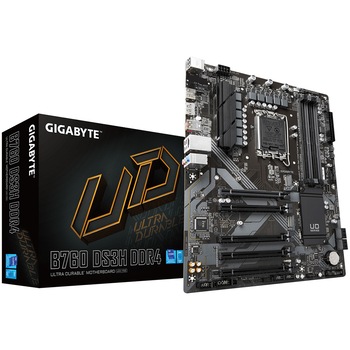

Placă de Bază Gigabyte - B760 DS3H DDR4
| Specificații | |
| Conector sursa (pini) | 1 x 24-pin ATX 1 x 8-pin ATX 12V |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conectivitate | 3 x audio jacks 1 x PS/2 1 x RJ-45 Port 1 x Display Port 1 x USB 3.2 Gen 2 Tip-A 1 x USB Type-C port, with USB 3.2 Gen 2 support 4 x USB 2.0 1 x HDMI |
| RAID integrat | 0,1,5,10 |
| Audio integrat | 2/4/5.1/7.1-channel |
| LAN integrat | 1 x 10/100/1000 |
| Slot PCI | 4 x PCI Express 3.0 x16 1 x PCI Express 4.0 x16 |
| Sloturi memorie | 4 |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 |
| Procesoare suportate | 12th/13th Gen Intel Core Processors, Pentium Gold si Celeron |
| Chipset | Intel B760 |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | Gigabyte |
| Porturi USB 2.0 | 4 |
| Porturi seriale | 1 x Header |
| Sloturi PCI-E x16 | 5 |
| Sloturi speciale | 2 x M.2 |
| Dimensiuni (L x W) (cm) | 30.5 cm x 24.4 cm |
| BIOS & memorie BIOS | 128 Mbit flash |
