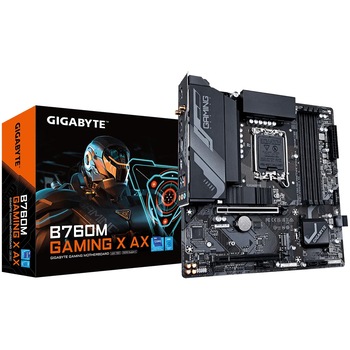

Placă de Bază Gigabyte - B760M GAMING X AX
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conectivitate | 1 x RJ-45 1 x DisplayPort 3 x Audio Jack 1 x HDMI 2 x SMA Antena Connectors (2T2R) 3 x USB 3.2 Gen 1 5 x USB 2.0 |
| LAN integrat | 1 x Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio integrat | Realtek Audio codec |
| Slot PCI | PCI-Express 4.0 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Frecventa memorie (MHz) | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Capacitate maxima memorie RAM | 192 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | Generatia 13 si 12 Intel Core, Pentium Gold si Celeron |
| CPU Socket | LGA 1700 |
| Chipset | B760 |
| Format | mATX |
| Brand | Gigabyte |
| Sloturi PCI-E x16 | 2 |
| Sloturi speciale | 2 x M.2 |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 cm |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
