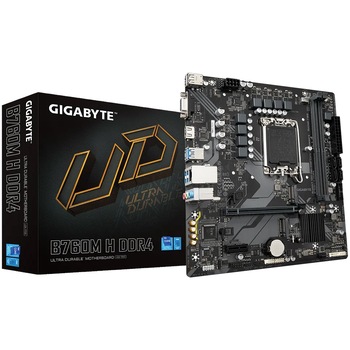

Placă de Bază Gigabyte - B760M H DDR4
| Specificații | |
| Slot PCI | PCI-Express 4.0 |
| Sloturi PCI-E x16 | 1 x PCIe 4.0 x16 |
| Conector sursa (pini) | 1 x conector de alimentare cu 8 pini +12V 1 x 24-pin Main Power connector |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 2 x USB 2.0 1 x RJ-45 3 x Audio Jack 1 x HDMI 1 x D-Sub 4 x USB 3.2 gen 1 |
| LAN integrat | Cip LAN Realtek GbE (1000/100 Mbit) |
| Audio integrat | Realtek audio codec |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200 MHz |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR4 |
| Chipset | Intel B760 |
| Procesoare suportate | Intel de generatia a 12-a Intel de generatia a 13-a |
| CPU Socket | 1700 |
| Format | Micro ATX - 23,0 x 21,5 cm |
| Brand | Gigabyte |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 2 x M.2 |
| BIOS & memorie BIOS | AMI UEFI BIOS 1 x 128 Mbit flash |
| Dimensiuni (L x W) (cm) | Micro ATX - 23,0 x 21,5 cm |
| Tehnologii suportate | Q-Flash GIGABYTE Control Center (GCC) Smart Fan 6 |
