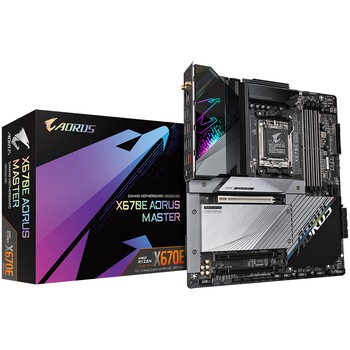

Placă de Bază Gigabyte X670E AORUS MASTER
| Specificații | |
| Sloturi PCI-E x16 | 3 |
| RAID integrat | 0, 1, 10 |
| Conector sursa (pini) | 1 x 24 + 6 pin ATX 2 x 8 pin ATX 12V |
| Interfata Serial ATA | 6 x SATA |
| LAN integrat | Intel 2.5GbE LAN chip |
| Conectivitate | 2 x USB 2.0 2 x Audio Jacks 1 x optical S/PDIF Out 2 x SMA Antena Connectors (2T2R) 1 x Display Port 1 x Q-Flash Plus button 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2 Tip-C 4 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 1 x RJ-45 2.5G LAN 1 x HDMI |
| Audio integrat | Realtek ALC1220-VB |
| Slot PCI | PCIe 5.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5200/4800/4400 |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR5 |
| Socket procesor | 1 |
| Procesoare suportate | AMD Ryzen Seria 7000 |
| Chipset | AMD X670 |
| CPU Socket | AM5 |
| Format | E-ATX |
| Brand | Gigabyte |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Q-Flash RGB FUSION Q-Flash Plus Wi-Fi 6E Bluetooth 5.3 |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 26.9 |
