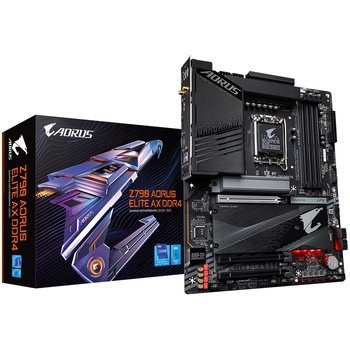

Placă de Bază Gigabyte - Z790 A ELITE AX D4
| Specificații | |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 1 x RJ-45 1 x Optical S/PDIF OUT 1 x HDMI 2 x Audio Jacks 2 x SMA Antena Connectors (2T2R) 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2x2 3 x USB 3.2 Gen 1 4 x USB 2.0 |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio integrat | Realtek Audio codec |
| Slot PCI | PCI-Express 5.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| Format | ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| Altele | Bluetooth 5.3 Wi-Fi 6E |
| BIOS & memorie BIOS | AMI UEFI BIOS 1 x 256 Mbit flash |
