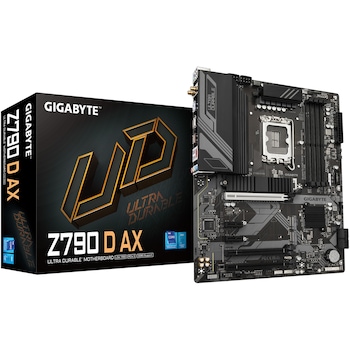

Placă de Bază Gigabyte - Z790 D AX
| Specificații | |
| Brand | Gigabyte |
| Format | ATX |
| CPU Socket | LGA1700 |
| Chipset | Intel Z790 |
| Procesoare suportate | Generatia 12, 13 si 14 Intel Core, Pentium Gold si Celeron |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Conectivitate | 2 x USB 2.0 1 x PS/2 1 x RJ-45 3 x audio jacks 1 x DisplayPort 1 x HDMI 2 x SMA Antena Connectors (2T2R) 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2 Tip-C |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 3 x M.2 |
| Sloturi PCI-E x1 | 2 |
| Tehnologii suportate | Q-Flash Smart Backup Q-Flash Plus GIGABYTE Control Center (GCC) |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Altele | 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth 5.3 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
