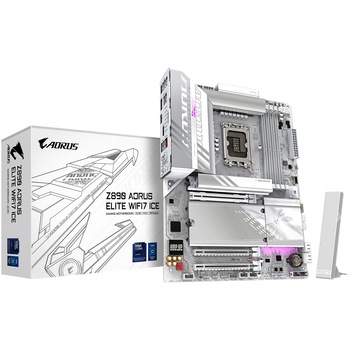

Placă de Bază Gigabyte - Z890 A ELITE WF7 ICE
| Specificații | |
| Sloturi PCI-E x16 | 3 |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Rata de transfer SATA | 6000 MB/s |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 1 x RJ-45 1 x DisplayPort 4 x USB 2.0/1.1 1 x S/PDIF Out 2 x Audio Jacks 2 x Antenna Ports 2 x USB 3.2 Gen 2 1 x Thunderbolt 4 3 x USB 3.2 Gen 1 |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Slot PCI | PCI Express 5.0 |
| Audio integrat | Realtek ALC1220 codec |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 |
| Capacitate maxima memorie RAM | 256 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | Intel Core Ultra Processors |
| Chipset | Intel Z890 |
| CPU Socket | LGA1851 |
| Format | ATX |
| Brand | Gigabyte |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Altele | Wi-Fi 7 (802.11be) Bluetooth 5.4 |
