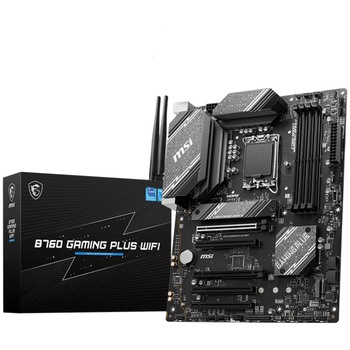

Placă de Bază MSI B760 GAMING PLUS WIFI
| Specificații | |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conectivitate | 1 x PS/2 1 x DisplayPort 5 x Audio Jacks 1 x HDMI 1 x USB 3.2 Gen 2 Tip-C 2 x USB 3.2 Gen 2 Type-A 4 x USB 2.0 |
| LAN integrat | Realtek RTL8125BG 2.5G LAN |
| Audio integrat | Realtek ALC897 Codec 7.1 |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 3.0 PCI-Express 4.0 |
| Suport Dualchannel | Da |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 192 GB |
| Frecventa memorie (MHz) | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Chipset | Intel B760 |
| Procesoare suportate | Intel Core din a 13-a si a 12-a generatie, Pentium Gold si Celeron |
| CPU Socket | LGA 1700 |
| Format | ATX |
| Brand | MSI |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x CPU 12V |
| Sloturi PCI-E x16 | 1 |
| Sloturi speciale | 2 x M.2 |
| Sloturi PCI-E x1 | 3 |
| Sloturi PCI-E x4 | 1 |
| Tehnologii suportate | Intel Wi-Fi 6E Bluetooth 5.3 |
| Dimensiuni (L x W) (cm) | 243.84 x 304.8 mm |
