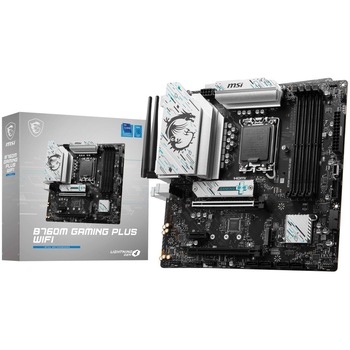

Placă de Bază MSI - B760M GAMING PLUS WIFI
| Specificații | |
| Brand | MSI |
| Format | mATX |
| CPU Socket | LGA 1700 |
| Chipset | Intel B760M |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 4.0 |
| Audio integrat | Realtek ALC897 Codec 7.1 |
| LAN integrat | Realtek RTL8125BG 2.5G LAN |
| Conectivitate | 2 x USB 2.0 1 x PS/2 1 x RJ-45 2 x HDMI 3 x Audio Jack 2 x DisplayPort 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 5Gbps Type-A |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x CPU 12V |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | Intel Wi-Fi 6E Bluetooth 5.3 |
| Dimensiuni (L x W) (cm) | 24.3 x 24.3 cm |
