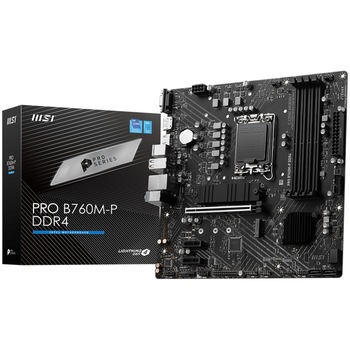

Placă de Bază MSI - PRO B760M-P DDR4
| Specificații | |
| Interfata Serial ATA | 4 x SATA III |
| Conectivitate | 1 x VGA 1 x RJ-45 1 x DisplayPort 3 x Audio Jack 2 x PS/2 1 x HDMI 1 x USB 3.2 Gen 2 Tip-C 1 x USB 3.2 Gen 1 4 x USB 2.0 |
| LAN integrat | Realtek RTL8111H Gigabit LAN |
| Audio integrat | Realtek ALC897 Codec 7.1 |
| Slot PCI | PCI-Express 4.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Procesoare suportate | Intel Core din a 13-a si a 12-a generatie, Pentium Gold si Celeron |
| Chipset | B760 |
| CPU Socket | 1700 |
| Brand | MSI |
| Format | mATX |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V |
| Sloturi PCI-E x16 | 1 |
| Sloturi speciale | 2 x M.2 |
| Sloturi PCI-E x1 | 2 |
| Tehnologii suportate | Audio Boost Mystic Light Core Boost Memory Boost |
| Dimensiuni (L x W) (cm) | 243.84 x 243.84 mm |
