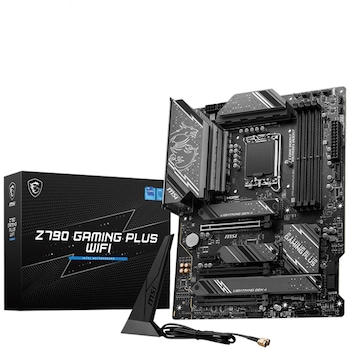

Placă de Bază MSI - Z790 GAMING PLUS WIFI
| Specificații | |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Interfata Serial ATA | 6 x SATA 6Gb/s |
| LAN integrat | Intel 2.5Gbps LAN |
| Conectivitate | 1 x PS/2 1 x RJ-45 6 x Audio Jacks 1 x DisplayPort 1 x HDMI 2 x Antenna Ports 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 1 x USB 3.2 Gen 2 Tip-A 2 x USB 3.2 Gen 1 5Gbps Type-A 4 x USB 2.0 |
| Audio integrat | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Suport Dualchannel | Da |
| Capacitate maxima memorie RAM | 192 GB |
| Frecventa memorie (MHz) | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Tip memorie | DDR5 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor si Intel Processor 300(T) |
| Chipset | Z790 |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | MSI |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Mystic Light Click BIOS 5 |
| Dimensiuni (L x W) (cm) | 24.3 x 30.4 cm |
