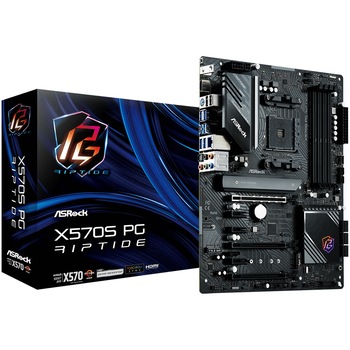

Placă de Bază ASROCK X570S PG RIPTIDE
| Specificații | |
| Brand | ASROCK |
| Format | ATX |
| CPU Socket | AM4 |
| Chipset | AMD X570 |
| Procesoare suportate | AMD Ryzen seria 2000, 3000, 4000G, 5000 si 5000G |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Frecventa memorie (MHz): | 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Next Generation Ryzen series APUs support DDR4 5200+(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI Express x16 4.0 |
| Audio integrat: | Realtek ALC897 7.1 |
| LAN integrat | Killer E3100G 2.5G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Conectivitate | 5 x Audio Jacks 1 x PS/2 2 x USB 2.0 1 x Optical SPDIF Out 4 x USB 3.2 gen 1 1 x Antenna Bracket 1 x USB 3.2 Gen 2 Tip-C 1 x BIOS FlashBack button 1 x USB 3.2 Gen 2 Tip-A 1 x RJ-45 2.5G LAN 1 x HDMI |
| Interfata Serial ATA | 6 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V 1 x 4 pin 12V |
| RAID integrat | 0, 1, 10 |
| Sloturi PCI-E x16 | 3 |
| Sloturi PCI-E x1 | 3 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | ASRock Full Spike Protection ASRock Polychrome RGB ASRock Killer LAN ASRock Hyper M.2 |
| BIOS & memorie BIOS | Jumperfree "Plug and Play" ACPI 5.1 SMBIOS 2.3 support 256Mb AMI UEFI Legal BIOS CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
