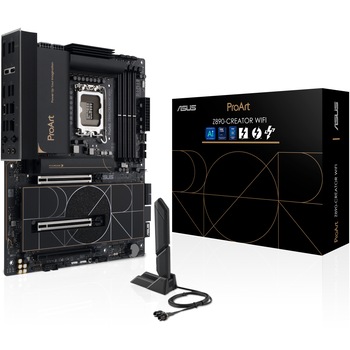

Placă de Bază ASUS - ProArt Z890-CREATOR WIFI
| Specificații | |
| Brand | ASUS |
| Format | ATX |
| CPU Socket | LGA1851 |
| Chipset | Intel Z890 |
| Procesoare suportate | Intel Core Ultra Processors (Series 2) |
| Socket procesor | 1 |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 192 GB |
| Frecventa memorie (MHz): | 9066+MT/s (OC) |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Standarde memorie | Unbuffered |
| Slot PCI | 2 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4) |
| Audio integrat: | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 1 x Intel 2.5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet |
| Conectivitate | 2 x RJ-45 1 x HDMI 2 x Audio Jacks 1 x Wi-Fi Module 1 x BIOS FlashBack button 6 x USB 3.2 Gen 2 Tip A 1 x DisplayPort In Port 1 x Thunderbolt 4 1 x USB 2.0 2 x Thunderbolt 5 |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24-pin ATX 2 x 8-pin +12V Power connector |
| RAID integrat | 0,1,5,10 |
| Porturi USB 2.0 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 5 x M.2 |
| Tehnologii suportate | 2x2 Wi-Fi 7 (802.11be) |
| BIOS & memorie BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Altele | ASUS EZ DIY ASUS Q-Design AURA Sync ASUS 5X PROTECTION III ASUS Thermal Solution |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
