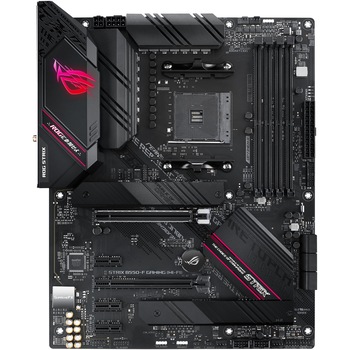

Placă de Bază ASUS - ROG STRIX B550-F GAMING (WI-FI)
| Specificații | |
| RAID integrat | 0, 1, 10 |
| Conector sursa (pini) | 1 x 8 pin ATX 12V 1 x 24 pin EATX 1 x 4-pin ATX |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 1 x Optical S/PDIF OUT 1 x RJ-45 5 x Audio Jacks 1 x DisplayPort 2 x USB 2.0 1 x ASUS Wi-Fi Module 4 x USB 3.2 gen 1 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 1 x HDMI |
| LAN integrat | Intel I225-V 2.5Gb Ethernet |
| Sloturi memorie | 4 |
| Slot PCI | PCI Express x16 4.0 |
| Audio integrat | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Suport ECC | Variaza in functie de CPU |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 |
| Capacitate maxima memorie RAM | 128 GB |
| Socket procesor | 1 |
| Tip memorie | DDR 4 |
| Procesoare suportate | AMD Ryzen din a 3-a generatie |
| Chipset | AMD B550 |
| CPU Socket | AM4 |
| Brand | ASUS |
| Format | ATX |
| Rata de transfer SATA | 750 MB/s |
| Sloturi PCI-E x16 | 1 |
| Sloturi PCI-E x1 | 3 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | ASUS Q-Design ASUS Exclusive Features ASUS EZ DIY Asus AURA RGB ROG Exclusive Software |
| BIOS & memorie BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| Altele | Bluetooth 5.1 Intel Wi-Fi 6 AX200 |
