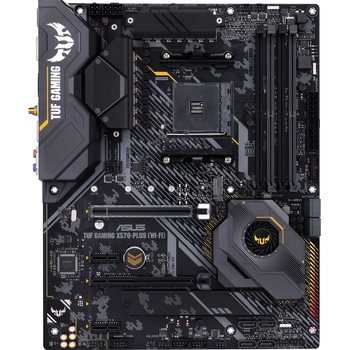

Placă de Bază ASUS TUF GAMING X570-PLUS (WI-FI)
| Specificații | |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 3 x M.2 |
| Sloturi PCI-E x16 | 4 (x16, x16, x8, x4) |
| Porturi USB 2.0 | 4 |
| Porturi USB 3.1 | 9 x USB 3.2 |
| Conector sursa (pini) | 1 x 4 pin ATX 12V 1 x 8 pin ATX 12V 1 x 24 pin EATX |
| Interfata Serial ATA | 8 x SATA III |
| RAID integrat | 0, 1, 10 |
| Conectivitate | 1 x Optical S/PDIF OUT 1 x RJ-45 5 x Audio Jacks 1 x PS/2 1 x DisplayPort 1 x HDMI |
| LAN integrat | Realtek L8200A |
| Audio integrat | Realtek ALC S1200A |
| Slot PCI | PCI Express x16 4.0 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR4 |
| Socket procesor | 1 |
| Procesoare suportate | AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen/2nd si 1st Gen AMD Ryzen cu Radeon Vega Graphics |
| Chipset | AMD X570 |
| CPU Socket | AM4 |
| Format | ATX |
| Brand | ASUS |
| Tehnologii suportate | ASUS Q-Design ASUS Exclusive Features ASUS EZ DIY AURA: RGB Lighting Control ASUS Quiet Thermal Solution ASUS TUF Protection |
| BIOS & memorie BIOS | Multi-Language BIOS UEFI AMI BIOS PnP ASUS EZ Flash 3 256Mb Flash ROM SM BIOS 3.2 ACPI 6.2 CrashFree BIOS 3 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
