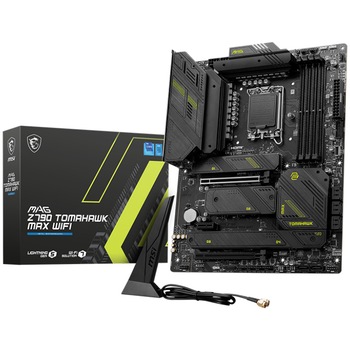

Placă de Bază MSI - MAG Z790 TOMAHAWK MAX WIFI
| Specificații | |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Interfata Serial ATA | 8 x SATA III |
| Conectivitate | 1 x RJ-45 1 x DisplayPort 5 x Audio Jacks 1 x HDMI 2 x USB-C 4 x USB 3.2 Gen 1 (albastru) Tip-A 3 x USB 3.2 Gen 2 10Gbps Type-A |
| Audio integrat | Realtek ALC4080 Codec 7.1 |
| LAN integrat | Intel 2.5Gbps LAN |
| Slot PCI | PCI-Express 5.0 |
| Frecventa memorie (MHz) | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Capacitate maxima memorie RAM | 256 GB |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Tip memorie | DDR5 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| Format | ATX |
| Brand | MSI |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 1 |
| Sloturi speciale | 4 x M.2 |
| BIOS & memorie BIOS | Click BIOS 5 |
| Dimensiuni (L x W) (cm) | 24.3 x 30.4 cm |
| Tehnologii suportate | Mystic Light |
| Altele | Bluetooth 5.3 Wi-Fi 7 (802.11be) |
